G14-65 High Precision Adjustable DC Stabilized Power Supply | Digital Variable Lab Power Source

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

Details

Product Description

The G14-65 professional laboratory DC power source is an essential instrument for high-precision diagnostic and repair environments. This adjustable linear regulated power supply provides highly stable voltage and current outputs, featuring independent fine and coarse adjustment knobs for the ultimate level of control over your electrical testing parameters in workshop settings.

Designed for industrial reliability, this Digital Power Supply is perfect for powering solenoid valves and electronic modules during sensitive component verification. For technicians performing comprehensive fuel system diagnostics, this unit integrates perfectly alongside a professional common rail test bench setup. Its clear LED display allows for simultaneous monitoring of Amps, mAmps, and Volts, ensuring maximum safety for delicate electronic circuits

Scene graph

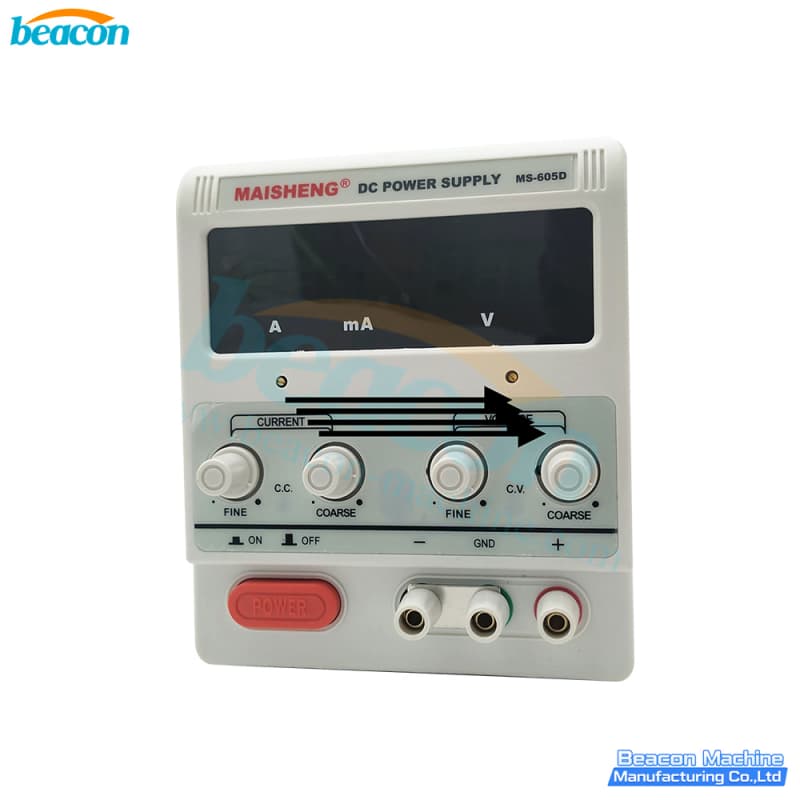

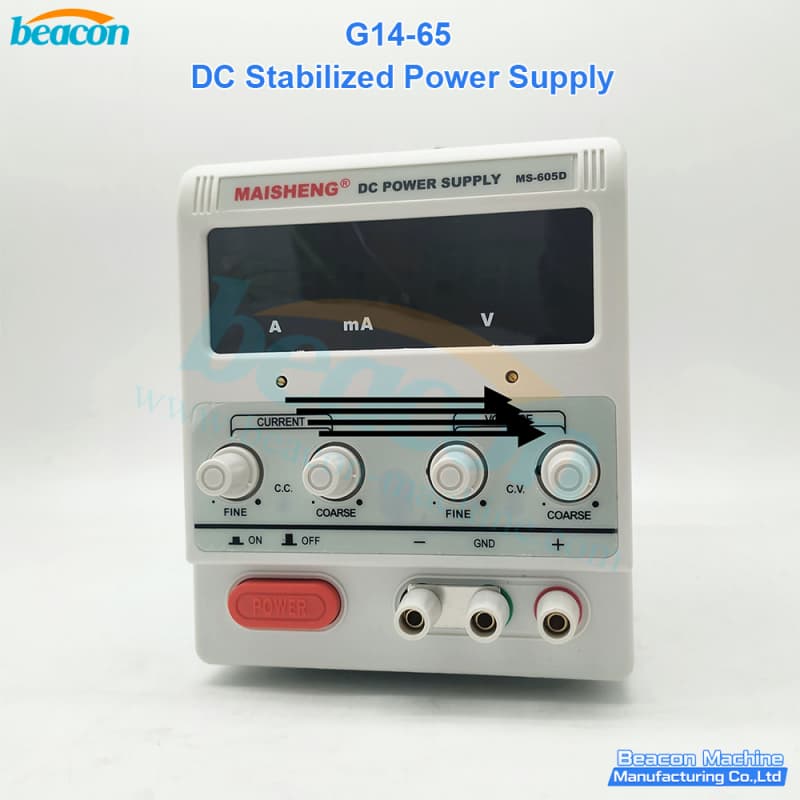

G14-65 professional high precision adjustable DC stabilized power supply front panel view.

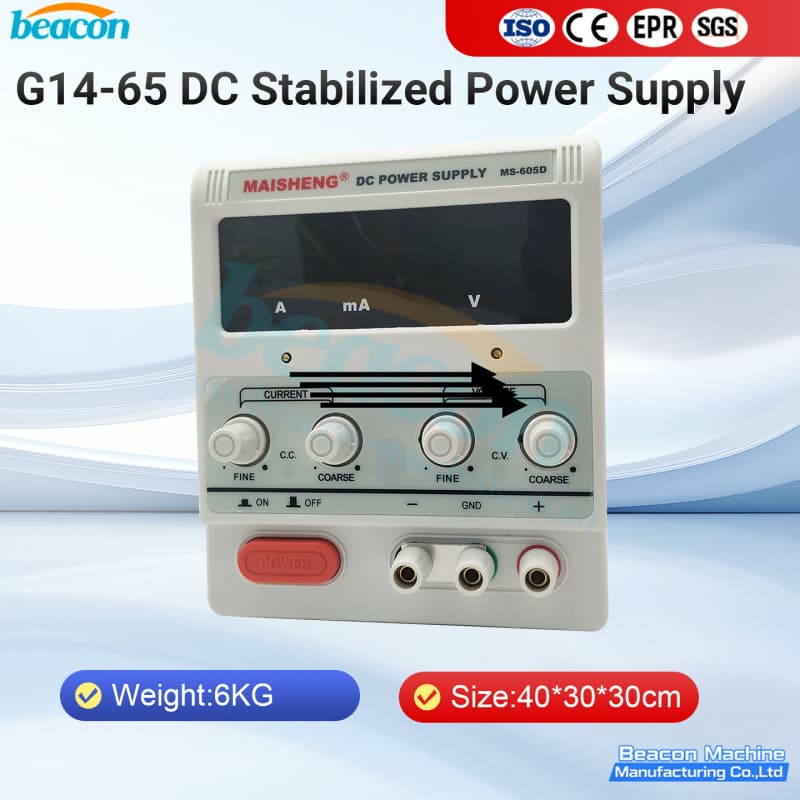

Laboratory variable DC power source with digital LED display for precision voltage and current monitoring.

parameter

Features	Specifications
Model Number	G14-65
Output Voltage Range	0-60V Continuously Adjustable
Output Current Range	0-5A Continuously Adjustable
Input Voltage	110V/220V AC ±10% (Selectable)
Display Type	Dual 3-Digit Digital LED Display
Regulation Type	Linear Mode (Low Ripple & Noise)
Voltage Stability	±0.01% + 3mV
Current Stability	±0.2% + 3mA
Adjustment Knobs	Independent Fine & Coarse Tuning
Protection Features	Overload, Short Circuit, and Over-heat Protection
Cooling System	Integrated Intelligent Cooling Fan
Net Weight	6.0 kg
Physical Dimensions	40 x 30 x 30 cm
